Measurment Model

import pymc as pm
import pandas as pd
import numpy as np
from pytensor import tensor as pt
import arviz as az
from matplotlib import pyplot as plt
import seaborn as sns
from pymc import do, observe

df = pd.read_csv('sem_data.csv')
df.head()

	motiv	harm	stabi	ppsych	ses	verbal	read	arith	spell
0	-7.907122	-5.075312	-3.138836	-17.800210	4.766450	-3.633360	-3.488981	-9.989121	-6.567873
1	1.751478	-4.155847	3.520752	7.009367	-6.048681	-7.693461	-4.520552	8.196238	8.778973
2	14.472570	-4.540677	4.070600	23.734260	-16.970670	-3.909941	-4.818170	7.529984	-5.688716
3	-1.165421	-5.668406	2.600437	1.493158	1.396363	21.409450	-3.138441	5.730547	-2.915676
4	-4.222899	-10.072150	-6.030737	-5.985864	-18.376400	-1.438816	-2.009742	-0.623953	-1.024624

coords = {
    "obs": list(range(len(df))),
    "indicators": ["motiv", "harm", "stabi", "verbal", "ses", "ppsych", "read", "arith", "spell"],
    "indicators_1": ["motiv", "harm", "stabi"],
    "indicators_2": ["verbal", "ses", "ppsych"],
    "indicators_3": ["read", "arith", "spell"],
    "latent": ["adjust", "risk", "achieve"],
}

def make_lambda(indicators, name='lambdas1', priors=[1, 10]):
    """ Takes an argument indicators which is a string in the coords dict"""
    temp_name = name + '_'
    lambdas_ = pm.Normal(temp_name, priors[0], priors[1], dims=(indicators))
    # Force a fixed scale on the factor loadings for factor 1
    lambdas_1 = pm.Deterministic(
        name, pt.set_subtensor(lambdas_[0], 1), dims=(indicators)
    )
    return lambdas_1

obs_idx = list(range(len(df)))
with pm.Model(coords=coords) as model:

    # Set up Factor Loadings
    lambdas_1 = make_lambda('indicators_1', 'lambdas1')
    lambdas_2 = make_lambda('indicators_2', 'lambdas2', priors=[1, 2])
    lambdas_3 = make_lambda('indicators_3', 'lambdas3')
    # Specify covariance structure between latent factors
    kappa = 0
    sd_dist = pm.Exponential.dist(1.0, shape=3)
    chol, _, _ = pm.LKJCholeskyCov("chol_cov", n=3, eta=2, sd_dist=sd_dist, compute_corr=True)
    ksi = pm.MvNormal("ksi", kappa, chol=chol, dims=("obs", "latent"))

    # Construct Pseudo Observation matrix based on Factor Loadings
    m1 = ksi[obs_idx, 0] * lambdas_1[0]
    m2 = ksi[obs_idx, 0] * lambdas_1[1]
    m3 = ksi[obs_idx, 0] * lambdas_1[2]
    m4 = ksi[obs_idx, 1] * lambdas_2[0]
    m5 = ksi[obs_idx, 1] * lambdas_2[1]
    m6 = ksi[obs_idx, 1] * lambdas_2[2]
    m7 = ksi[obs_idx, 2] * lambdas_3[0]
    m8 = ksi[obs_idx, 2] * lambdas_3[1]
    m9 = ksi[obs_idx, 2] * lambdas_3[2]

    mu = pm.Deterministic("mu", pm.math.stack([m1, m2, m3, m4, m5, m6, m7, m8, m9]).T)

    ## Error Terms
    Psi = pm.InverseGamma("Psi", 2, 13, dims="indicators")

    # Likelihood
    _ = pm.Normal(
        "likelihood",
        mu,
        Psi,
        observed=df[coords['indicators']].values,
    )

    idata = pm.sample(
        draws=1000,
        chains=4,
        nuts_sampler="numpyro", target_accept=0.95, idata_kwargs={"log_likelihood": True},
        tune=2000,
        random_seed=150
    )

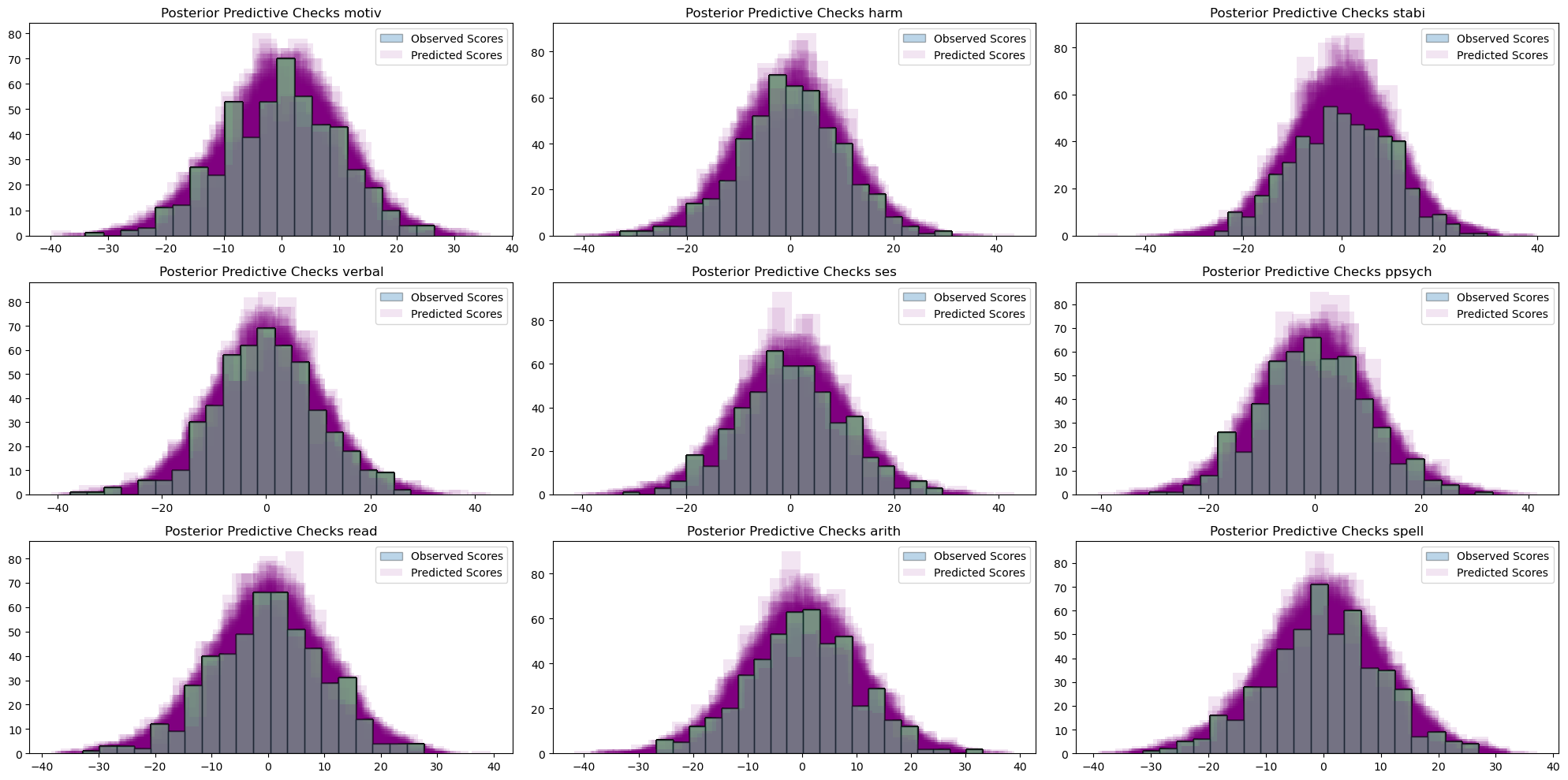

    idata.extend(pm.sample_posterior_predictive(idata))

pm.model_to_graphviz(model)

---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
Cell In[76], line 38
     30     # Likelihood
     31     _ = pm.Normal(
     32         "likelihood",
     33         mu,
     34         Psi,
     35         observed=df[coords['indicators']].values,
     36     )
---> 38     idata = pm.sample(
     39         draws=1000,
     40         chains=4,
     41         nuts_sampler="numpyro", target_accept=0.95, idata_kwargs={"log_likelihood": True},
     42         tune=2000,
     43         random_seed=150
     44     )
     45     idata.extend(pm.sample_posterior_predictive(idata))
     47 pm.model_to_graphviz(model)

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/pymc/sampling/mcmc.py:727, in sample(draws, tune, chains, cores, random_seed, progressbar, progressbar_theme, step, var_names, nuts_sampler, initvals, init, jitter_max_retries, n_init, trace, discard_tuned_samples, compute_convergence_checks, keep_warning_stat, return_inferencedata, idata_kwargs, nuts_sampler_kwargs, callback, mp_ctx, blas_cores, model, **kwargs)
    722         raise ValueError(
    723             "Model can not be sampled with NUTS alone. Your model is probably not continuous."
    724         )
    726     with joined_blas_limiter():
--> 727         return _sample_external_nuts(
    728             sampler=nuts_sampler,
    729             draws=draws,
    730             tune=tune,
    731             chains=chains,
    732             target_accept=kwargs.pop("nuts", {}).get("target_accept", 0.8),
    733             random_seed=random_seed,
    734             initvals=initvals,
    735             model=model,
    736             var_names=var_names,
    737             progressbar=progressbar,
    738             idata_kwargs=idata_kwargs,
    739             compute_convergence_checks=compute_convergence_checks,
    740             nuts_sampler_kwargs=nuts_sampler_kwargs,
    741             **kwargs,
    742         )
    744 if isinstance(step, list):
    745     step = CompoundStep(step)

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/pymc/sampling/mcmc.py:356, in _sample_external_nuts(sampler, draws, tune, chains, target_accept, random_seed, initvals, model, var_names, progressbar, idata_kwargs, compute_convergence_checks, nuts_sampler_kwargs, **kwargs)
    353 elif sampler in ("numpyro", "blackjax"):
    354     import pymc.sampling.jax as pymc_jax
--> 356     idata = pymc_jax.sample_jax_nuts(
    357         draws=draws,
    358         tune=tune,
    359         chains=chains,
    360         target_accept=target_accept,
    361         random_seed=random_seed,
    362         initvals=initvals,
    363         model=model,
    364         var_names=var_names,
    365         progressbar=progressbar,
    366         nuts_sampler=sampler,
    367         idata_kwargs=idata_kwargs,
    368         compute_convergence_checks=compute_convergence_checks,
    369         **nuts_sampler_kwargs,
    370     )
    371     return idata
    373 else:

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/pymc/sampling/jax.py:615, in sample_jax_nuts(draws, tune, chains, target_accept, random_seed, initvals, jitter, model, var_names, nuts_kwargs, progressbar, keep_untransformed, chain_method, postprocessing_backend, postprocessing_vectorize, postprocessing_chunks, idata_kwargs, compute_convergence_checks, nuts_sampler)
    612     raise ValueError(f"{nuts_sampler=} not recognized")
    614 tic1 = datetime.now()
--> 615 raw_mcmc_samples, sample_stats, library = sampler_fn(
    616     model=model,
    617     target_accept=target_accept,
    618     tune=tune,
    619     draws=draws,
    620     chains=chains,
    621     chain_method=chain_method,
    622     progressbar=progressbar,
    623     random_seed=random_seed,
    624     initial_points=initial_points,
    625     nuts_kwargs=nuts_kwargs,
    626 )
    627 tic2 = datetime.now()
    629 if idata_kwargs is None:

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/pymc/sampling/jax.py:469, in _sample_numpyro_nuts(model, target_accept, tune, draws, chains, chain_method, progressbar, random_seed, initial_points, nuts_kwargs)
    455 pmap_numpyro.run(
    456     map_seed,
    457     init_params=initial_points,
   (...)
    465     ),
    466 )
    468 raw_mcmc_samples = pmap_numpyro.get_samples(group_by_chain=True)
--> 469 sample_stats = _numpyro_stats_to_dict(pmap_numpyro)
    470 return raw_mcmc_samples, sample_stats, numpyro

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/pymc/sampling/jax.py:409, in _numpyro_stats_to_dict(posterior)
    407     data[name] = value
    408     if stat == "num_steps":
--> 409         data["tree_depth"] = np.log2(value).astype(int) + 1
    410 return data

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/jax/_src/array.py:425, in ArrayImpl.__array__(self, dtype, context, copy)
    422 def __array__(self, dtype=None, context=None, copy=None):
    423   # copy argument is supported by np.asarray starting in numpy 2.0
    424   kwds = {} if copy is None else {'copy': copy}
--> 425   return np.asarray(self._value, dtype=dtype, **kwds)

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/jax/_src/profiler.py:333, in annotate_function.<locals>.wrapper(*args, **kwargs)
    330 @wraps(func)
    331 def wrapper(*args, **kwargs):
    332   with TraceAnnotation(name, **decorator_kwargs):
--> 333     return func(*args, **kwargs)
    334   return wrapper

File ~/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/jax/_src/array.py:645, in ArrayImpl._value(self)
    643 npy_value = np.empty(self.shape, self.dtype)
    644 for i, ind in _cached_index_calc(self.sharding, self.shape):
--> 645   npy_value[ind] = self._arrays[i]._single_device_array_to_np_array()
    646 self._npy_value = npy_value
    647 self._npy_value.flags.writeable = False

KeyboardInterrupt:

az.summary(idata, var_names=["lambdas1", "lambdas2", "lambdas3"])

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
lambdas1[motiv]	1.000	0.000	1.000	1.000	0.000	0.000	4000.0	4000.0	NaN
lambdas1[harm]	0.895	0.043	0.814	0.973	0.002	0.001	521.0	1401.0	1.01
lambdas1[stabi]	0.703	0.047	0.617	0.791	0.002	0.001	801.0	1571.0	1.01
lambdas2[verbal]	1.000	0.000	1.000	1.000	0.000	0.000	4000.0	4000.0	NaN
lambdas2[ses]	0.842	0.087	0.679	1.000	0.004	0.003	453.0	1294.0	1.01
lambdas2[ppsych]	-0.801	0.084	-0.969	-0.653	0.004	0.003	521.0	1276.0	1.00
lambdas3[read]	1.000	0.000	1.000	1.000	0.000	0.000	4000.0	4000.0	NaN
lambdas3[arith]	0.841	0.035	0.773	0.906	0.001	0.001	1955.0	2586.0	1.00
lambdas3[spell]	0.981	0.029	0.927	1.037	0.001	0.001	1123.0	1700.0	1.00

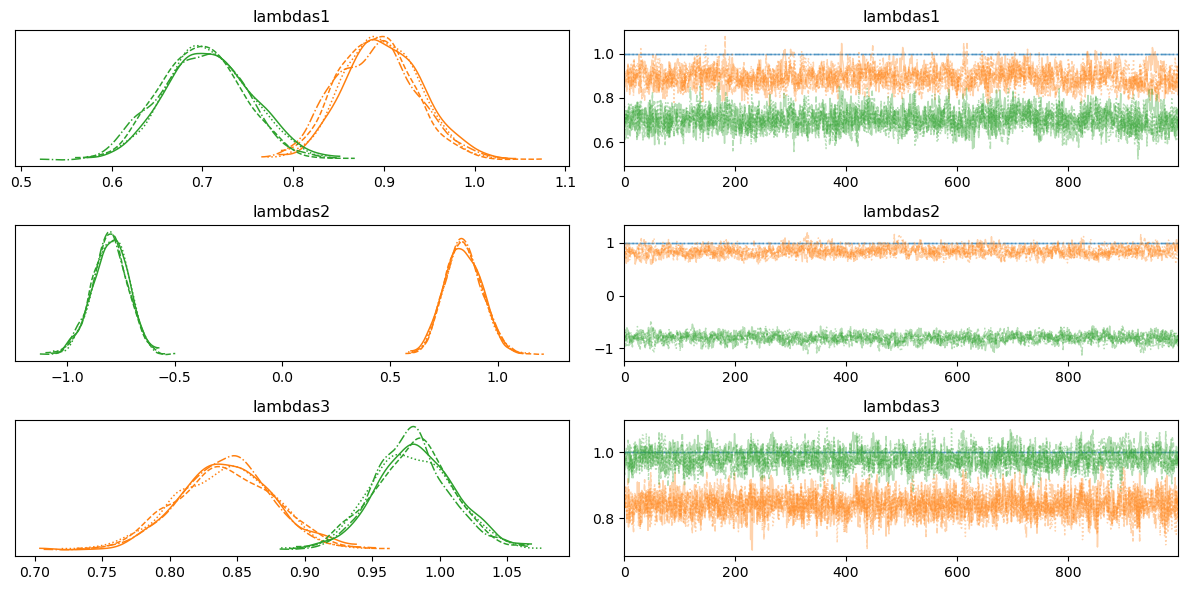

az.plot_trace(idata, var_names=['lambdas1', 'lambdas2', 'lambdas3'])
plt.tight_layout();

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/density_utils.py:488: UserWarning: Your data appears to have a single value or no finite values
  warnings.warn("Your data appears to have a single value or no finite values")
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/density_utils.py:488: UserWarning: Your data appears to have a single value or no finite values
  warnings.warn("Your data appears to have a single value or no finite values")
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/density_utils.py:488: UserWarning: Your data appears to have a single value or no finite values
  warnings.warn("Your data appears to have a single value or no finite values")

def make_factor_loadings_df(idata):
    factor_loadings = pd.DataFrame(
        az.summary(
            idata, var_names=["lambdas1", "lambdas2", "lambdas3"]
        )["mean"]
    ).reset_index()
    factor_loadings["factor"] = factor_loadings["index"].str.split("[", expand=True)[0]
    factor_loadings.columns = ["factor_loading", "factor_loading_weight", "factor"]
    factor_loadings["factor_loading_weight_sq"] = factor_loadings["factor_loading_weight"] ** 2
    factor_loadings["sum_sq_loadings"] = factor_loadings.groupby("factor")[
        "factor_loading_weight_sq"
    ].transform(sum)
    factor_loadings["error_variances"] = az.summary(idata, var_names=["Psi"])["mean"].values
    factor_loadings["total_indicator_variance"] = (
        factor_loadings["factor_loading_weight_sq"] + factor_loadings["error_variances"]
    )
    factor_loadings["total_variance"] = factor_loadings["total_indicator_variance"].sum()
    factor_loadings["indicator_explained_variance"] = (
        factor_loadings["factor_loading_weight_sq"] / factor_loadings["total_variance"]
    )
    factor_loadings["factor_explained_variance"] = (
        factor_loadings["sum_sq_loadings"] / factor_loadings["total_variance"]
    )
    num_cols = [c for c in factor_loadings.columns if not c in ["factor_loading", "factor"]]
    return factor_loadings


pd.set_option("display.max_colwidth", 15)
factor_loadings = make_factor_loadings_df(idata)
num_cols = [c for c in factor_loadings.columns if not c in ["factor_loading", "factor"]]
factor_loadings.style.format("{:.3f}", subset=num_cols).background_gradient(
    axis=0, subset=["indicator_explained_variance", "factor_explained_variance"]
)

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/var/folders/__/ng_3_9pn1f11ftyml_qr69vh0000gn/T/ipykernel_52977/2929805399.py:12: FutureWarning: The provided callable <built-in function sum> is currently using SeriesGroupBy.sum. In a future version of pandas, the provided callable will be used directly. To keep current behavior pass the string "sum" instead.
  ].transform(sum)

	factor_loading	factor_loading_weight	factor	factor_loading_weight_sq	sum_sq_loadings	error_variances	total_indicator_variance	total_variance	indicator_explained_variance	factor_explained_variance
0	lambdas1[motiv]	1.000	lambdas1	1.000	2.295	3.676	4.676	60.931	0.016	0.038
1	lambdas1[harm]	0.895	lambdas1	0.801	2.295	5.623	6.424	60.931	0.013	0.038
2	lambdas1[stabi]	0.703	lambdas1	0.494	2.295	7.605	8.099	60.931	0.008	0.038
3	lambdas2[verbal]	1.000	lambdas2	1.000	2.351	6.915	7.915	60.931	0.016	0.039
4	lambdas2[ses]	0.842	lambdas2	0.709	2.351	8.027	8.736	60.931	0.012	0.039
5	lambdas2[ppsych]	-0.801	lambdas2	0.642	2.351	8.242	8.884	60.931	0.011	0.039
6	lambdas3[read]	1.000	lambdas3	1.000	2.670	3.409	4.409	60.931	0.016	0.044
7	lambdas3[arith]	0.841	lambdas3	0.707	2.670	6.168	6.875	60.931	0.012	0.044
8	lambdas3[spell]	0.981	lambdas3	0.962	2.670	3.951	4.913	60.931	0.016	0.044

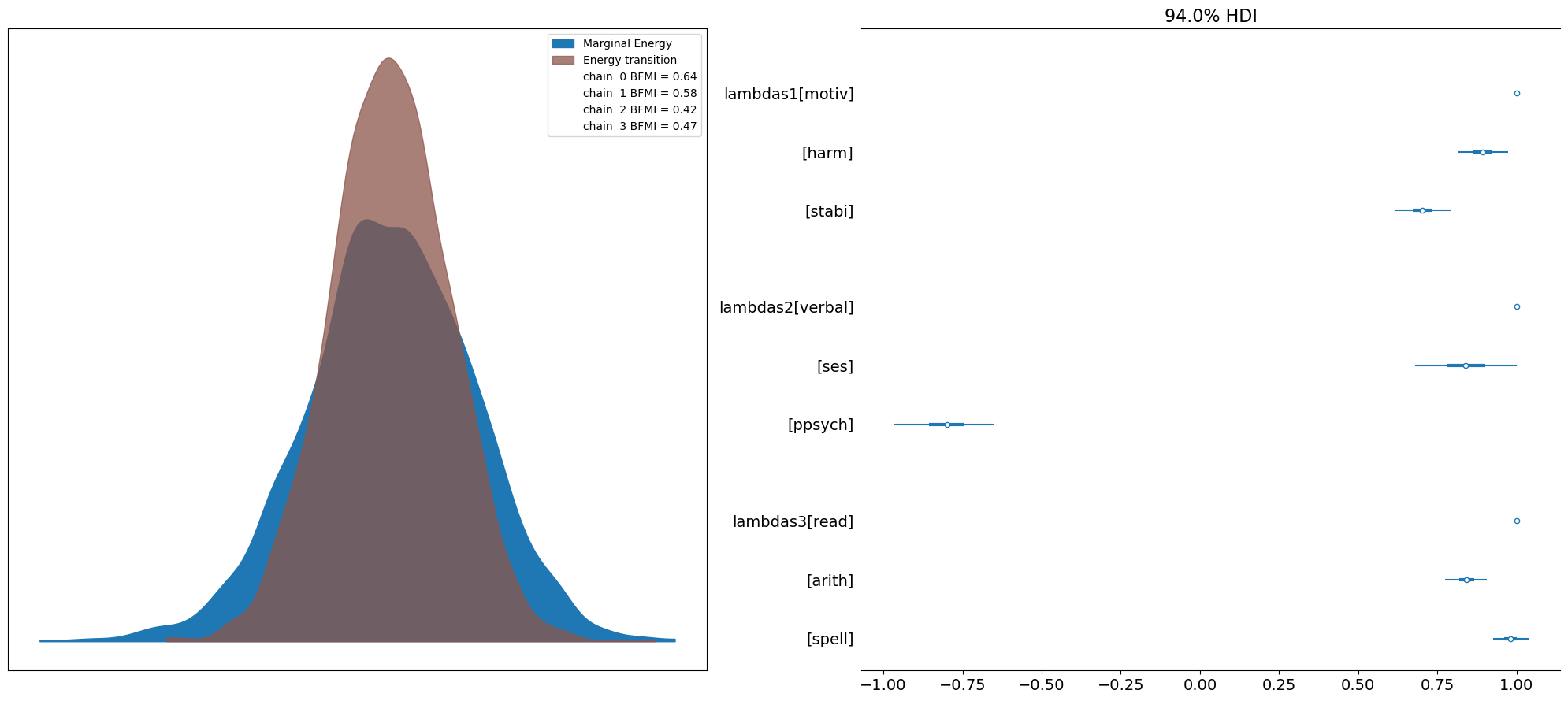

fig, axs = plt.subplots(1, 2, figsize=(20, 9))
axs = axs.flatten()
az.plot_energy(idata, ax=axs[0])
az.plot_forest(idata, var_names=["lambdas1", "lambdas2", "lambdas3"], combined=True, ax=axs[1]);
plt.tight_layout();

drivers = coords['indicators']
def get_posterior_resids(idata, samples=100, metric="cov"):
    resids = []
    for i in range(100):
        if metric == "cov":
            model_cov = pd.DataFrame(
                az.extract(idata["posterior_predictive"])["likelihood"][:, :, i]
            ).cov()
            obs_cov = df[drivers].cov()
        else:
            model_cov = pd.DataFrame(
                az.extract(idata["posterior_predictive"])["likelihood"][:, :, i]
            ).corr()
            obs_cov = df[drivers].corr()
        model_cov.index = obs_cov.index
        model_cov.columns = obs_cov.columns
        residuals = model_cov - obs_cov
        resids.append(residuals.values.flatten())

    residuals_posterior = pd.DataFrame(pd.DataFrame(resids).mean().values.reshape(9, 9))
    residuals_posterior.index = obs_cov.index
    residuals_posterior.columns = obs_cov.index
    return residuals_posterior


residuals_posterior_cov = get_posterior_resids(idata, 1000)
residuals_posterior_corr = get_posterior_resids(idata, 1000, metric="corr")

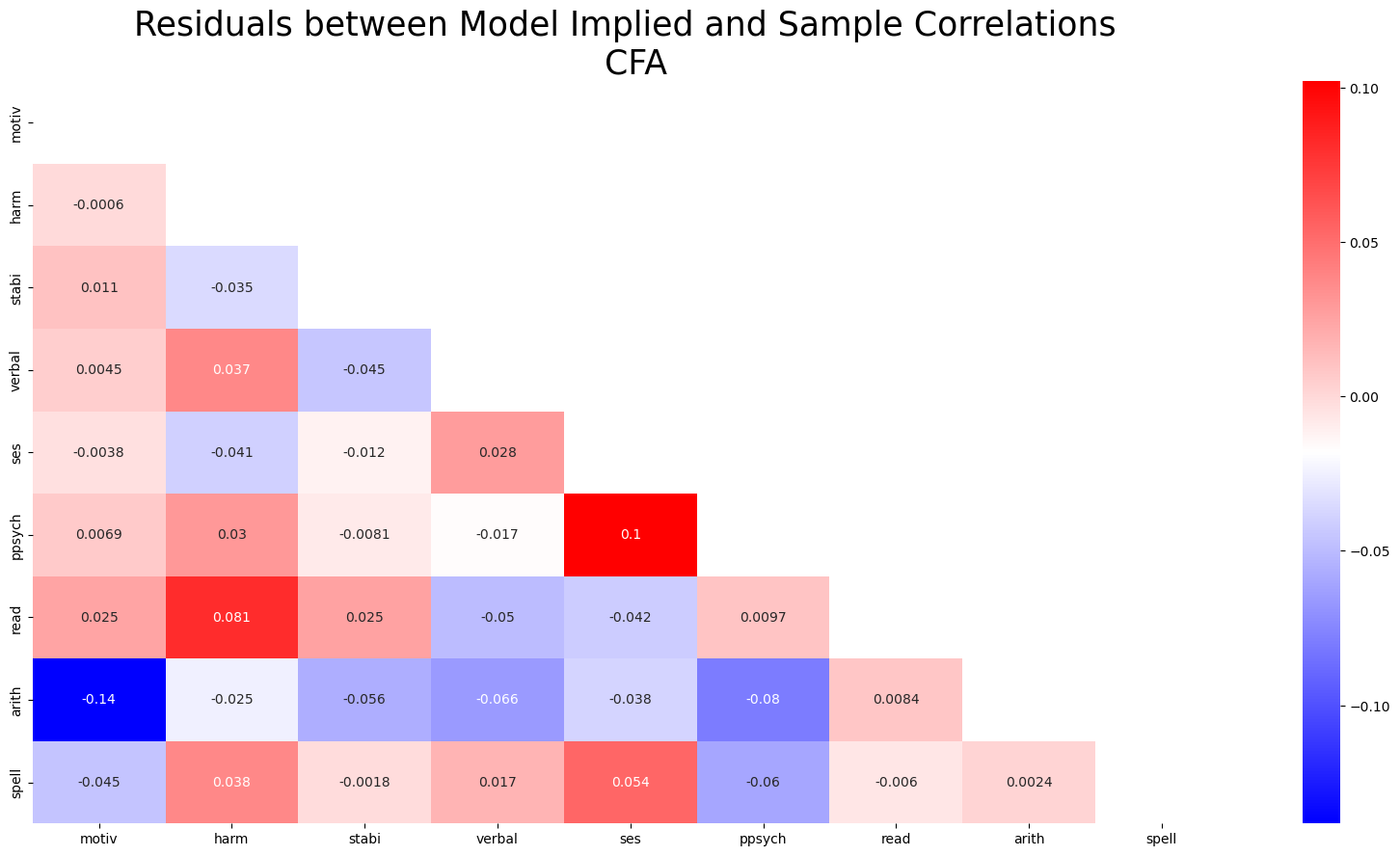

fig, ax = plt.subplots(figsize=(20, 10))
mask = np.triu(np.ones_like(residuals_posterior_corr, dtype=bool))
ax = sns.heatmap(residuals_posterior_corr, annot=True, cmap="bwr", mask=mask)
ax.set_title("Residuals between Model Implied and Sample Correlations \n CFA", fontsize=25);

def make_ppc(
    idata,
    samples=100,
    drivers=drivers,
    dims=(3, 3),
):
    fig, axs = plt.subplots(dims[0], dims[1], figsize=(20, 10))
    axs = axs.flatten()
    for i in range(len(drivers)):
        for j in range(samples):
            temp = az.extract(idata["posterior_predictive"].sel({"likelihood_dim_3": i}))[
                "likelihood"
            ].values[:, j]
            temp = pd.DataFrame(temp, columns=["likelihood"])
            if j == 0:
                axs[i].hist(df[drivers[i]], alpha=0.3, ec="black", bins=20, label="Observed Scores")
                axs[i].hist(
                    temp["likelihood"], color="purple", alpha=0.1, bins=20, label="Predicted Scores"
                )
            else:
                axs[i].hist(df[drivers[i]], alpha=0.3, ec="black", bins=20)
                axs[i].hist(temp["likelihood"], color="purple", alpha=0.1, bins=20)
            axs[i].set_title(f"Posterior Predictive Checks {drivers[i]}")
            axs[i].legend()
    plt.tight_layout()
    plt.show()


make_ppc(idata)

SEM Model

Making the Structural Matrix

import numpy as np
import pandas as pd
data = np.random.multivariate_normal([0,0,0], [[1, 0, 0], [0,1, 0], [0, 0, 1]], size=(500))
data = np.ones((500, 3))
betas = np.zeros((3, 3))
betas[1, 0] = 0.5
betas[1, 2] = 0.5
betas[0, 2] = 0.7

B_matrix = pd.DataFrame(betas, index=['adjust_coef', 'risk_coef', 'achieve_coef'],
                                columns=['adjust_target', 'risk_target', 'achieve_target'])
data = pd.DataFrame(data, columns=['adjust', 'risk', 'achieve'])
B_matrix

	adjust_target	risk_target	achieve_target
adjust_coef	0.0	0.0	0.7
risk_coef	0.5	0.0	0.5
achieve_coef	0.0	0.0	0.0

data.head()

	adjust	risk	achieve
0	1.0	1.0	1.0
1	1.0	1.0	1.0
2	1.0	1.0	1.0
3	1.0	1.0	1.0
4	1.0	1.0	1.0

np.dot(data, B_matrix)

array([[0.5, 0. , 1.2],
       [0.5, 0. , 1.2],
       [0.5, 0. , 1.2],
       ...,
       [0.5, 0. , 1.2],
       [0.5, 0. , 1.2],
       [0.5, 0. , 1.2]])

Fitting the Model

def make_sem():
    coords = {
    "obs": list(range(len(df))),
    "indicators": ["motiv", "harm", "stabi", "verbal", "ses", "ppsych", "read", "arith", "spell"],
    "indicators_1": ["motiv", "harm", "stabi"],
    "indicators_2": ["verbal", "ses", "ppsych"],
    "indicators_3": ["read", "arith", "spell"],
    "latent": ["adjust", "risk", "achieve"],
    "paths": ["risk->adjust", "risk-->achieve", "adjust-->achieve"]
    }

    obs_idx = list(range(len(df)))
    with pm.Model(coords=coords) as model:

        # Set up Factor Loadings
        lambdas_1 = make_lambda('indicators_1', 'lambdas1', priors=[1, .5]) #adjust
        lambdas_2 = make_lambda('indicators_2', 'lambdas2', priors=[1, .5]) # risk
        lambdas_3 = make_lambda('indicators_3', 'lambdas3', priors=[1, .5]) # achieve

        # Specify covariance structure between latent factors
        sd_dist = pm.Exponential.dist(1.0, shape=3)
        chol, _, _ = pm.LKJCholeskyCov("chol_cov", n=3, eta=2, sd_dist=sd_dist, compute_corr=True)
        ksi = pm.MvNormal("ksi", 0, chol=chol, dims=("obs", "latent"))

        ## Build Regression Components
        coefs = pm.Normal('betas', 0, .5, dims='paths')
        zeros = pt.zeros((3, 3))
        ## adjust ~ risk
        zeros1 = pt.set_subtensor(zeros[1, 0], coefs[0])
        ## achieve ~ risk + adjust
        zeros2 = pt.set_subtensor(zeros1[1, 2], coefs[1])
        coefs_ = pt.set_subtensor(zeros2[0, 2], coefs[2])

        structural_relations = pm.Deterministic('endogenous_structural_paths', pm.math.dot(ksi, coefs_))

        # Construct Pseudo Observation matrix based on Factor Loadings
        m1 = ksi[obs_idx, 0] * lambdas_1[0] +  structural_relations[obs_idx, 0] #adjust
        m2 = ksi[obs_idx, 0] * lambdas_1[1] +  structural_relations[obs_idx, 0] #adjust
        m3 = ksi[obs_idx, 0] * lambdas_1[2] +  structural_relations[obs_idx, 0] #adjust
        m4 = ksi[obs_idx, 1] * lambdas_2[0] +  structural_relations[obs_idx, 1]  #risk
        m5 = ksi[obs_idx, 1] * lambdas_2[1] +  structural_relations[obs_idx, 1]  #risk
        m6 = ksi[obs_idx, 1] * lambdas_2[2] +  structural_relations[obs_idx, 1]  #risk
        m7 = ksi[obs_idx, 2] * lambdas_3[0] +  structural_relations[obs_idx, 2]  #achieve
        m8 = ksi[obs_idx, 2] * lambdas_3[1] +  structural_relations[obs_idx, 2]  #achieve
        m9 = ksi[obs_idx, 2] * lambdas_3[2] +  structural_relations[obs_idx, 2]  #achieve

        mu = pm.Deterministic("mu", pm.math.stack([m1, m2, m3, m4, m5, m6, m7, m8, m9]).T)


        ## Error Terms
        Psi = pm.InverseGamma("Psi", 2, 13, dims="indicators")

        # Likelihood
        _ = pm.Normal(
            "likelihood",
            mu,
            Psi,
            observed=df[coords['indicators']].values,
        )

        idata = pm.sample(
            draws=2500,
            chains=4,
            #nuts_sampler="numpyro",
            target_accept=0.90, idata_kwargs={"log_likelihood": True},
            random_seed=150,
            tune=1000,
        )
        idata.extend(pm.sample_posterior_predictive(idata))
    return idata, model

idata_sem, model_sem = make_sem()

Auto-assigning NUTS sampler...
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [lambdas1_, lambdas2_, lambdas3_, chol_cov, ksi, betas, Psi]
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/multiprocessing/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  self.pid = os.fork()

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/multiprocessing/popen_fork.py:66: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  self.pid = os.fork()

Sampling 4 chains for 1_000 tune and 2_500 draw iterations (4_000 + 10_000 draws total) took 170 seconds.
There were 1 divergences after tuning. Increase `target_accept` or reparameterize.
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
The effective sample size per chain is smaller than 100 for some parameters.  A higher number is needed for reliable rhat and ess computation. See https://arxiv.org/abs/1903.08008 for details
Sampling: [likelihood]

pm.model_to_graphviz(model_sem)

az.summary(idata_sem, var_names=["lambdas1", "lambdas2", "lambdas3", "betas"])

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
lambdas1[motiv]	1.000	0.000	1.000	1.000	0.000	0.000	10000.0	10000.0	NaN
lambdas1[harm]	0.850	0.045	0.766	0.933	0.001	0.001	997.0	2361.0	1.00
lambdas1[stabi]	0.651	0.052	0.556	0.748	0.002	0.001	988.0	3122.0	1.00
lambdas2[verbal]	1.000	0.000	1.000	1.000	0.000	0.000	10000.0	10000.0	NaN
lambdas2[ses]	0.833	0.081	0.681	0.986	0.002	0.001	2282.0	4694.0	1.00
lambdas2[ppsych]	-0.764	0.079	-0.920	-0.623	0.002	0.001	2399.0	4215.0	1.00
lambdas3[read]	1.000	0.000	1.000	1.000	0.000	0.000	10000.0	10000.0	NaN
lambdas3[arith]	0.610	0.057	0.498	0.712	0.003	0.002	381.0	1068.0	1.00
lambdas3[spell]	0.825	0.037	0.755	0.894	0.001	0.001	757.0	1717.0	1.00
betas[risk->adjust]	0.202	0.139	-0.065	0.457	0.010	0.007	186.0	202.0	1.02
betas[risk-->achieve]	0.207	0.178	-0.129	0.534	0.012	0.009	208.0	487.0	1.01
betas[adjust-->achieve]	0.747	0.104	0.556	0.942	0.006	0.004	311.0	810.0	1.01

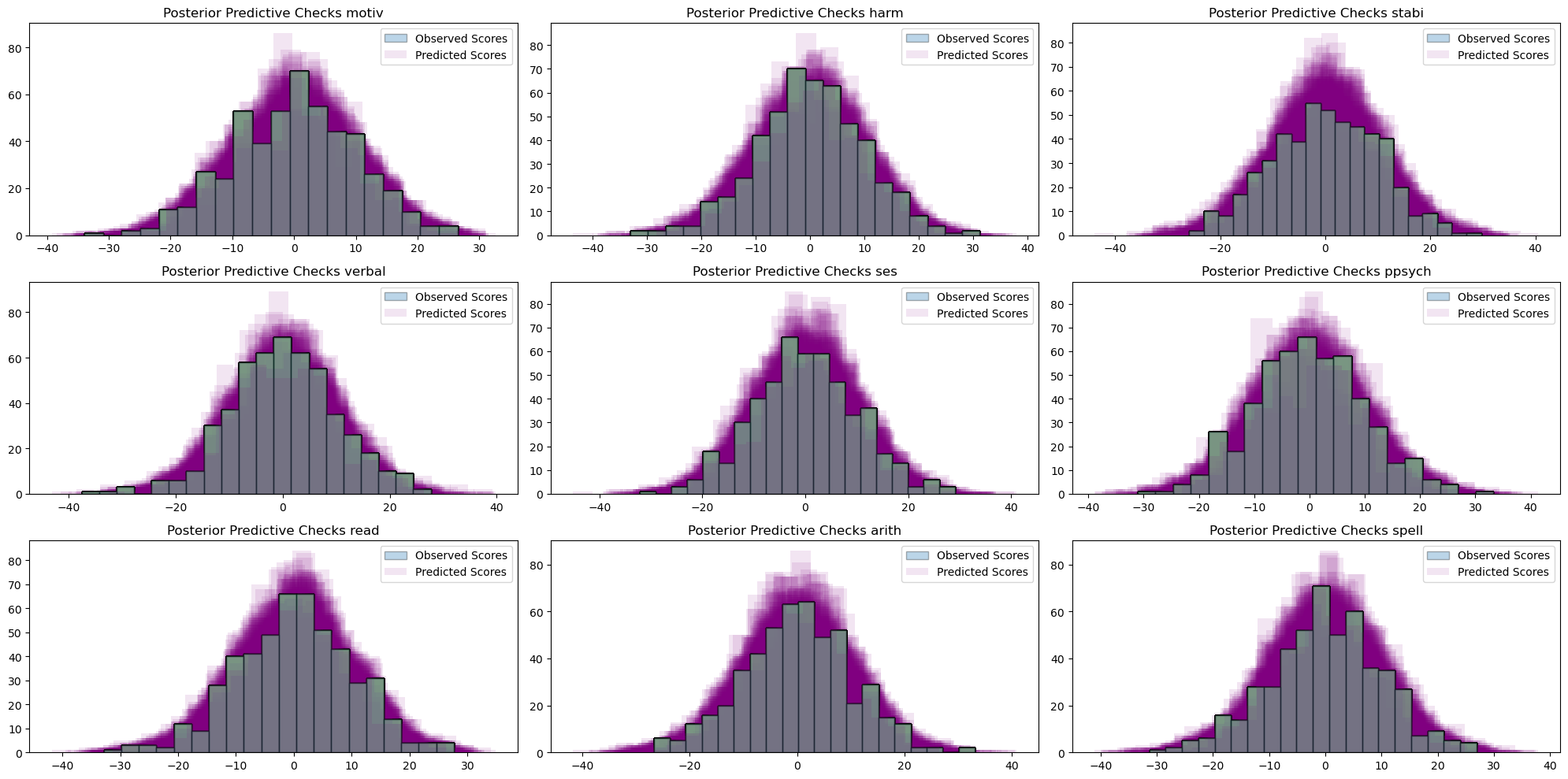

make_ppc(idata_sem)

residuals_posterior_cov = get_posterior_resids(idata_sem, 1000)
residuals_posterior_corr = get_posterior_resids(idata_sem, 1000, metric="corr")

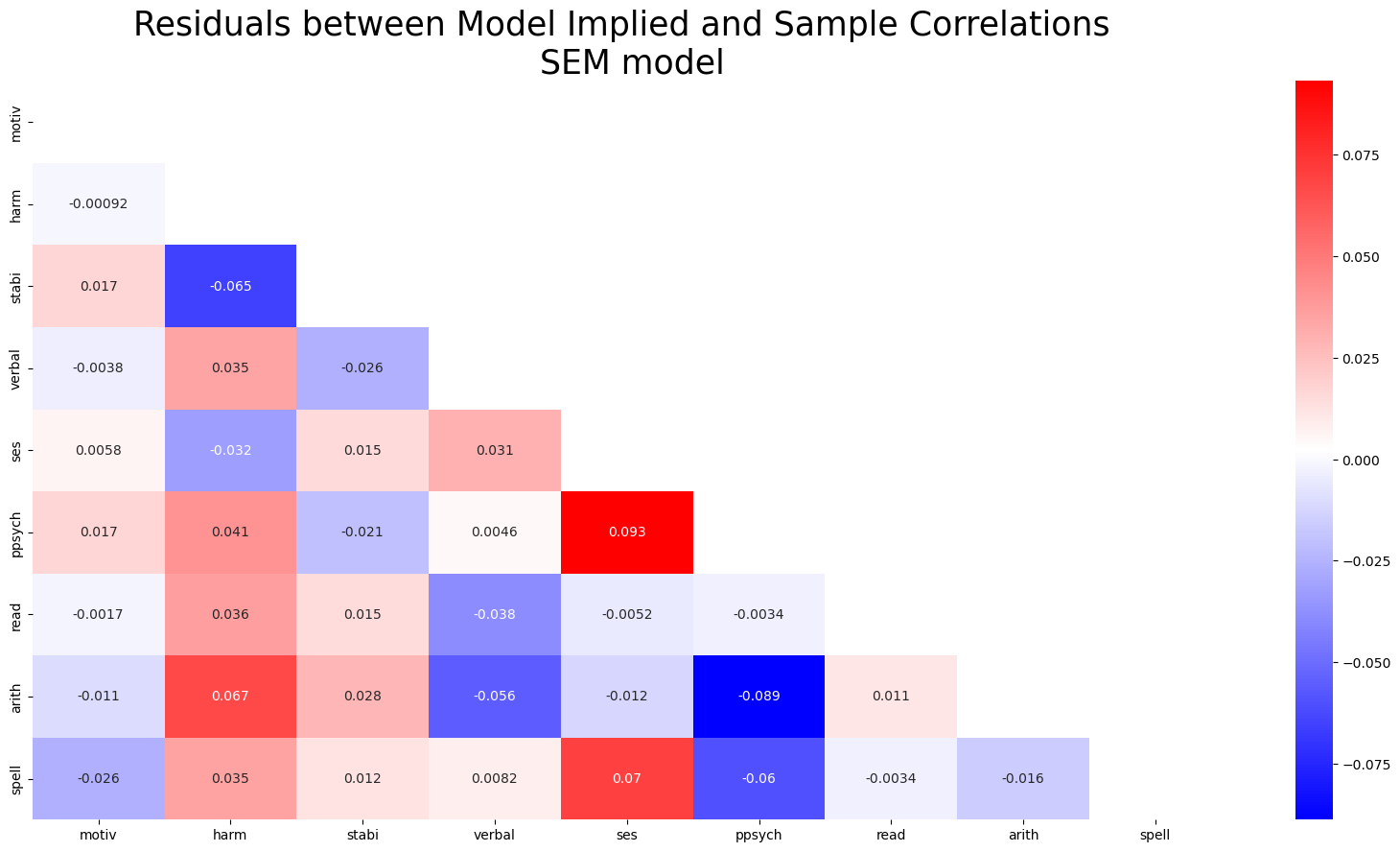

fig, ax = plt.subplots(figsize=(20, 10))
mask = np.triu(np.ones_like(residuals_posterior_corr, dtype=bool))
ax = sns.heatmap(residuals_posterior_corr, annot=True, cmap="bwr", mask=mask)
ax.set_title("Residuals between Model Implied and Sample Correlations \n SEM model", fontsize=25);

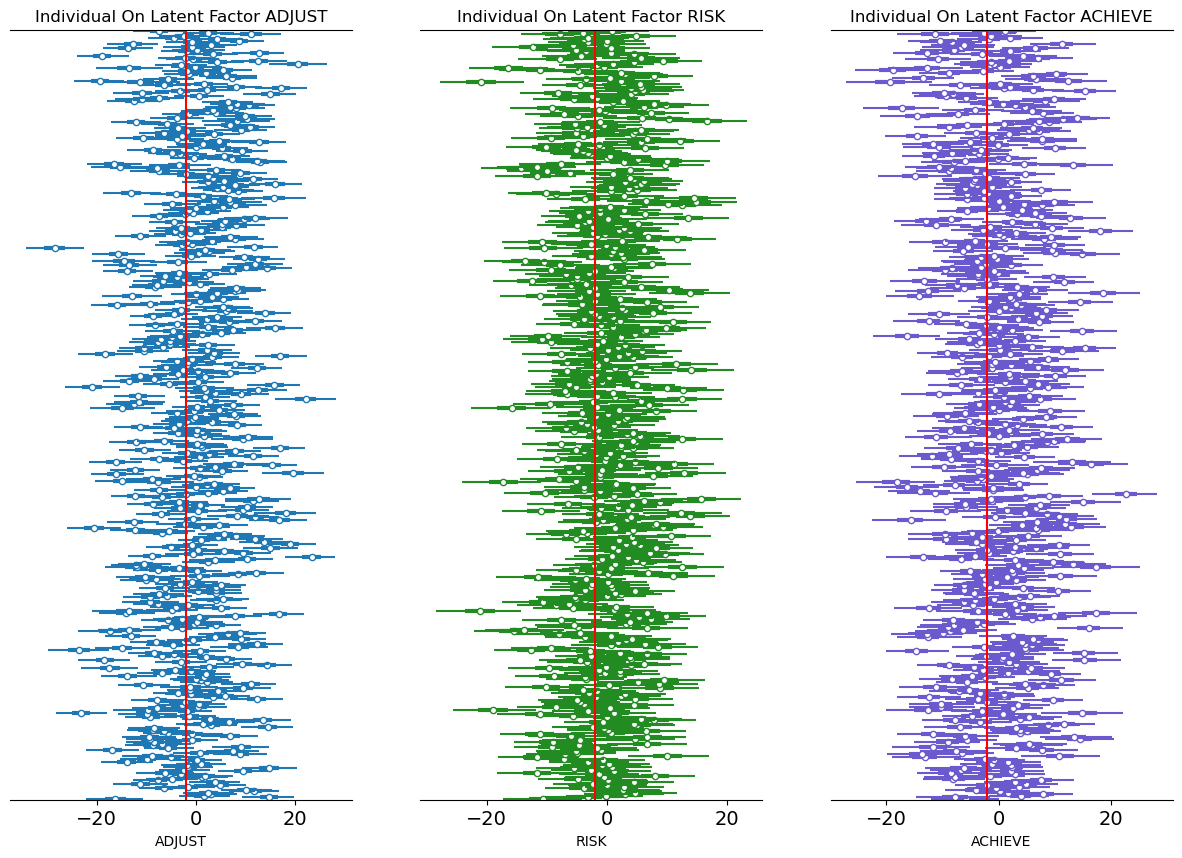

fig, axs = plt.subplots(1, 3, figsize=(15, 10))
axs = axs.flatten()
ax = axs[0]
ax1 = axs[1]
ax2 = axs[2]
az.plot_forest(idata_sem, var_names=["ksi"], combined=True, ax=ax, coords={"latent": ["adjust"]})
az.plot_forest(
    idata_sem,
    var_names=["ksi"],
    combined=True,
    ax=ax1,
    colors="forestgreen",
    coords={"latent": ["risk"]},
)
az.plot_forest(
    idata_sem,
    var_names=["ksi"],
    combined=True,
    ax=ax2,
    colors="slateblue",
    coords={"latent": ["achieve"]},
)
ax.set_yticklabels([])
ax.set_xlabel("ADJUST")
ax1.set_yticklabels([])
ax1.set_xlabel("RISK")
ax2.set_yticklabels([])
ax2.set_xlabel("ACHIEVE")
ax.axvline(-2, color="red")
ax1.axvline(-2, color="red")
ax2.axvline(-2, color="red")
ax.set_title("Individual On Latent Factor ADJUST")
ax1.set_title("Individual On Latent Factor RISK")
ax2.set_title("Individual On Latent Factor ACHIEVE")
plt.show();

compare_df = az.compare({'SEM': idata_sem, 'CFA': idata}, 'waic')
compare_df

/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/stats.py:1653: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/Users/nathanielforde/mambaforge/envs/bayesian_causal_book/lib/python3.10/site-packages/arviz/stats/stats.py:1653: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(

	rank	elpd_waic	p_waic	elpd_diff	weight	se	dse	warning	scale
SEM	0	-14525.202949	905.303983	0.000000	1.0	49.632750	0.000000	True	log
CFA	1	-14748.968775	939.024032	223.765826	0.0	48.571539	12.080799	True	log

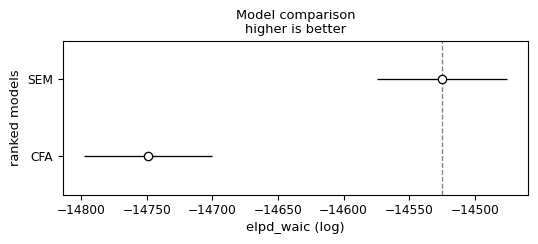

az.plot_compare(compare_df);

Counterfactual Analysis

model_sem

\[ \begin{array}{rcl} \text{lambdas1\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{lambdas2\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{lambdas3\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{chol\_cov} &\sim & \operatorname{\_lkjcholeskycov}(3,~2,~\operatorname{Exponential}(f()))\\\text{ksi} &\sim & \operatorname{MultivariateNormal}(f(\text{chol\_cov}),~f(\text{chol\_cov}))\\\text{betas} &\sim & \operatorname{Normal}(0,~0.5)\\\text{Psi} &\sim & \operatorname{InverseGamma}(2,~13)\\\text{lambdas1} &\sim & \operatorname{Deterministic}(f(\text{lambdas1\_}))\\\text{lambdas2} &\sim & \operatorname{Deterministic}(f(\text{lambdas2\_}))\\\text{lambdas3} &\sim & \operatorname{Deterministic}(f(\text{lambdas3\_}))\\\text{chol\_cov\_corr} &\sim & \operatorname{Deterministic}(f(\text{chol\_cov}))\\\text{chol\_cov\_stds} &\sim & \operatorname{Deterministic}(f(\text{chol\_cov}))\\\text{endogenous\_structural\_paths} &\sim & \operatorname{Deterministic}(f(\text{ksi},~\text{betas}))\\\text{mu} &\sim & \operatorname{Deterministic}(f(\text{ksi},~\text{betas},~\text{lambdas3\_},~\text{lambdas2\_},~\text{lambdas1\_}))\\\text{likelihood} &\sim & \operatorname{Normal}(\text{mu},~\text{Psi}) \end{array} \]

model_beta0 = do(model_sem, {"betas": [0, 0 , 0]}, prune_vars=True)
model_beta1 = do(model_sem, {"betas": [.6, .3, .7]}, prune_vars=True)
model_beta0

\[ \begin{array}{rcl} \text{lambdas1\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{lambdas2\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{lambdas3\_} &\sim & \operatorname{Normal}(1,~0.5)\\\text{chol\_cov} &\sim & \operatorname{\_lkjcholeskycov}(3,~2,~\operatorname{Exponential}(f()))\\\text{ksi} &\sim & \operatorname{MultivariateNormal}(f(\text{chol\_cov}),~f(\text{chol\_cov}))\\\text{Psi} &\sim & \operatorname{InverseGamma}(2,~13)\\\text{endogenous\_structural\_paths} &\sim & \operatorname{Deterministic}(f(\text{ksi}))\\\text{lambdas3} &\sim & \operatorname{Deterministic}(f(\text{lambdas3\_}))\\\text{lambdas2} &\sim & \operatorname{Deterministic}(f(\text{lambdas2\_}))\\\text{lambdas1} &\sim & \operatorname{Deterministic}(f(\text{lambdas1\_}))\\\text{mu} &\sim & \operatorname{Deterministic}(f(\text{ksi},~\text{lambdas3\_},~\text{lambdas2\_},~\text{lambdas1\_}))\\\text{likelihood} &\sim & \operatorname{Normal}(f(\text{ksi},~\text{lambdas1\_},~\text{lambdas2\_},~\text{lambdas3\_}),~\text{Psi}) \end{array} \]

pm.model_to_graphviz(model_beta0)

# Sample new sales data assuming Google Ads off: P(Y | c, do(z=0))
idata_z0 = pm.sample_posterior_predictive(
    idata_sem,
    model=model_beta0,
    predictions=False,
    var_names=["likelihood", "betas",],
)


# Sample new sales data assuming Google Ads off: P(Y | c, do(z=1))
idata_z1 = pm.sample_posterior_predictive(
    idata_sem,
    model=model_beta1,
    predictions=False,
    var_names=["likelihood", "betas"],
)

Sampling: [likelihood]

Sampling: [likelihood]

pd.DataFrame((idata_z0['posterior_predictive']['likelihood'] - idata_z1['posterior_predictive']['likelihood']).mean(dim=('chain', 'draw')).values)

	0	1	2	3	4	5	6	7	8
0	-0.463197	-0.358005	-0.286565	-0.114874	-0.042991	0.110666	4.936211	5.107738	4.972490
1	2.377638	2.422167	2.359539	-0.063802	-0.151001	-0.018147	-0.475168	-0.303663	-0.511428
2	4.663123	4.648260	4.735318	0.092329	-0.014905	-0.087927	-5.440901	-5.441826	-5.468720
3	-2.977008	-2.997935	-2.989136	-0.039031	0.041482	-0.025136	0.108632	0.264840	0.129751
4	1.826385	1.823625	1.722291	0.008998	-0.087842	0.038139	3.982011	4.043272	3.869997
...	...	...	...	...	...	...	...	...	...
495	-2.844905	-3.038198	-2.995460	-0.007683	0.025422	0.177166	-3.240432	-3.093730	-3.218599
496	-1.817311	-1.728041	-1.782307	0.086392	-0.032205	-0.147835	-3.111101	-3.096323	-3.237516
497	0.055163	0.142330	0.268756	-0.165110	-0.045748	0.036947	-1.071530	-1.102467	-1.087500
498	1.989527	1.991247	1.913922	-0.025677	0.027728	-0.097815	-9.445563	-9.406408	-9.387214
499	6.370377	6.422907	6.339601	-0.023407	-0.002096	0.105869	14.494246	14.581555	14.492164

500 rows × 9 columns

pd.DataFrame((idata_z0['posterior_predictive']['likelihood'] - idata_z1['posterior_predictive']['likelihood']).mean(dim=('chain', 'draw')).values).median()

0   -0.105562
1   -0.085492
2   -0.135569
3   -0.006139
4   -0.004415
5   -0.002360
6   -0.148865
7   -0.163581
8   -0.169653
dtype: float64

residuals_posterior_corr0 = get_posterior_resids(idata_z0, 1000, metric="corr")

residuals_posterior_corr1 = get_posterior_resids(idata_z1, 1000, metric="corr")

residuals_posterior_corr0 - residuals_posterior_corr1

	motiv	harm	stabi	verbal	ses	ppsych	read	arith	spell
motiv	0.000000	-0.080177	-0.131360	-0.243116	-0.192810	0.178007	-0.899440	-0.816758	-0.882780
harm	-0.080177	0.000000	-0.153191	-0.252675	-0.206456	0.188974	-0.799793	-0.729367	-0.786353
stabi	-0.131360	-0.153191	0.000000	-0.262698	-0.217575	0.197371	-0.678641	-0.611510	-0.658578
verbal	-0.243116	-0.252675	-0.262698	0.000000	-0.010569	-0.003814	-0.241953	-0.253102	-0.250916
ses	-0.192810	-0.206456	-0.217575	-0.010569	0.000000	0.001399	-0.196381	-0.206370	-0.204542
ppsych	0.178007	0.188974	0.197371	-0.003814	0.001399	0.000000	0.175259	0.185912	0.186708
read	-0.899440	-0.799793	-0.678641	-0.241953	-0.196381	0.175259	0.000000	-0.178436	-0.087744
arith	-0.816758	-0.729367	-0.611510	-0.253102	-0.206370	0.185912	-0.178436	0.000000	-0.219602
spell	-0.882780	-0.786353	-0.658578	-0.250916	-0.204542	0.186708	-0.087744	-0.219602	0.000000

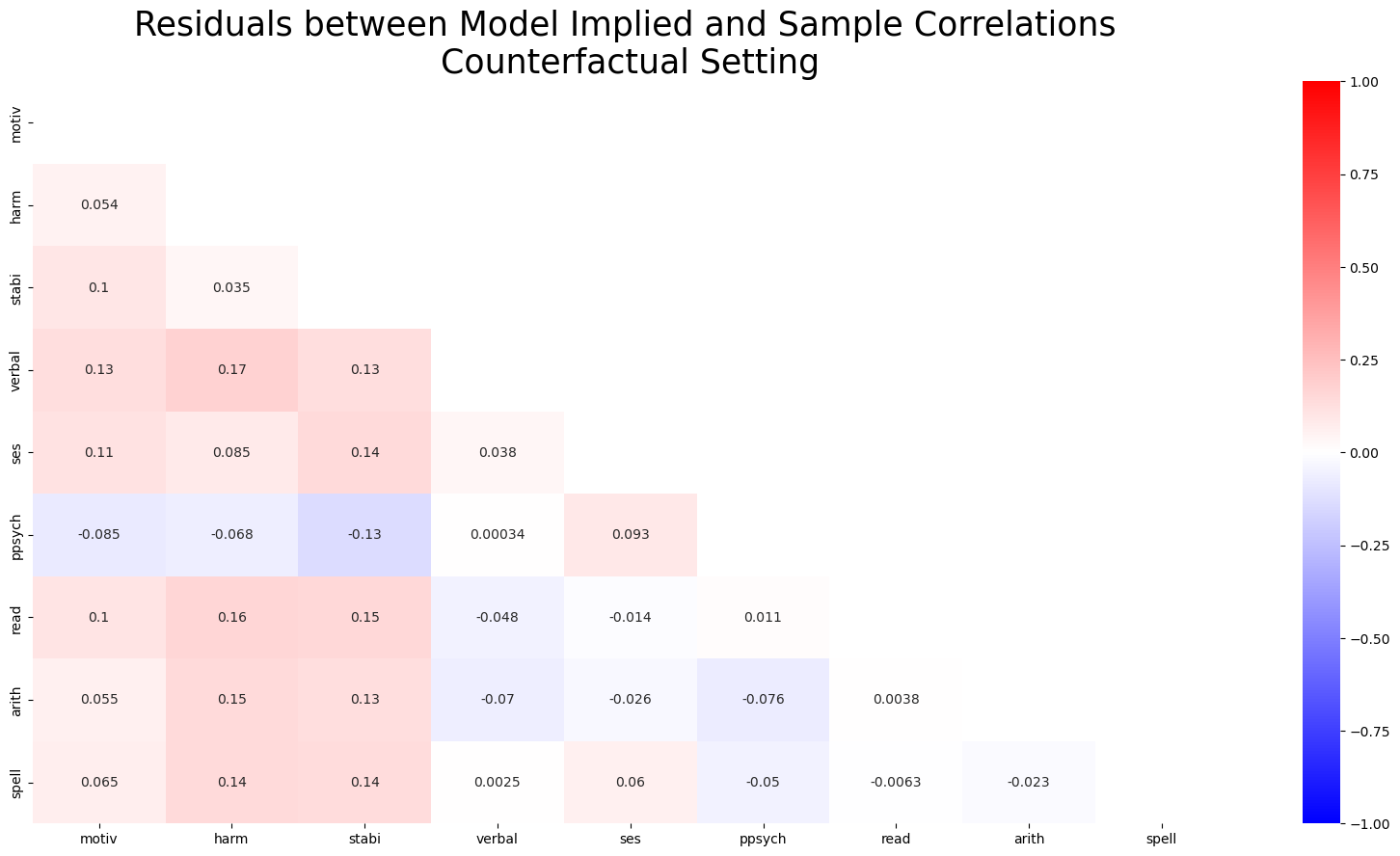

fig, ax = plt.subplots(figsize=(20, 10))
mask = np.triu(np.ones_like(residuals_posterior_corr1, dtype=bool))
ax = sns.heatmap(residuals_posterior_corr1, annot=True, cmap="bwr", mask=mask, vmax=1, vmin=-1)
ax.set_title("Residuals between Model Implied and Sample Correlations \n Counterfactual Setting ", fontsize=25);

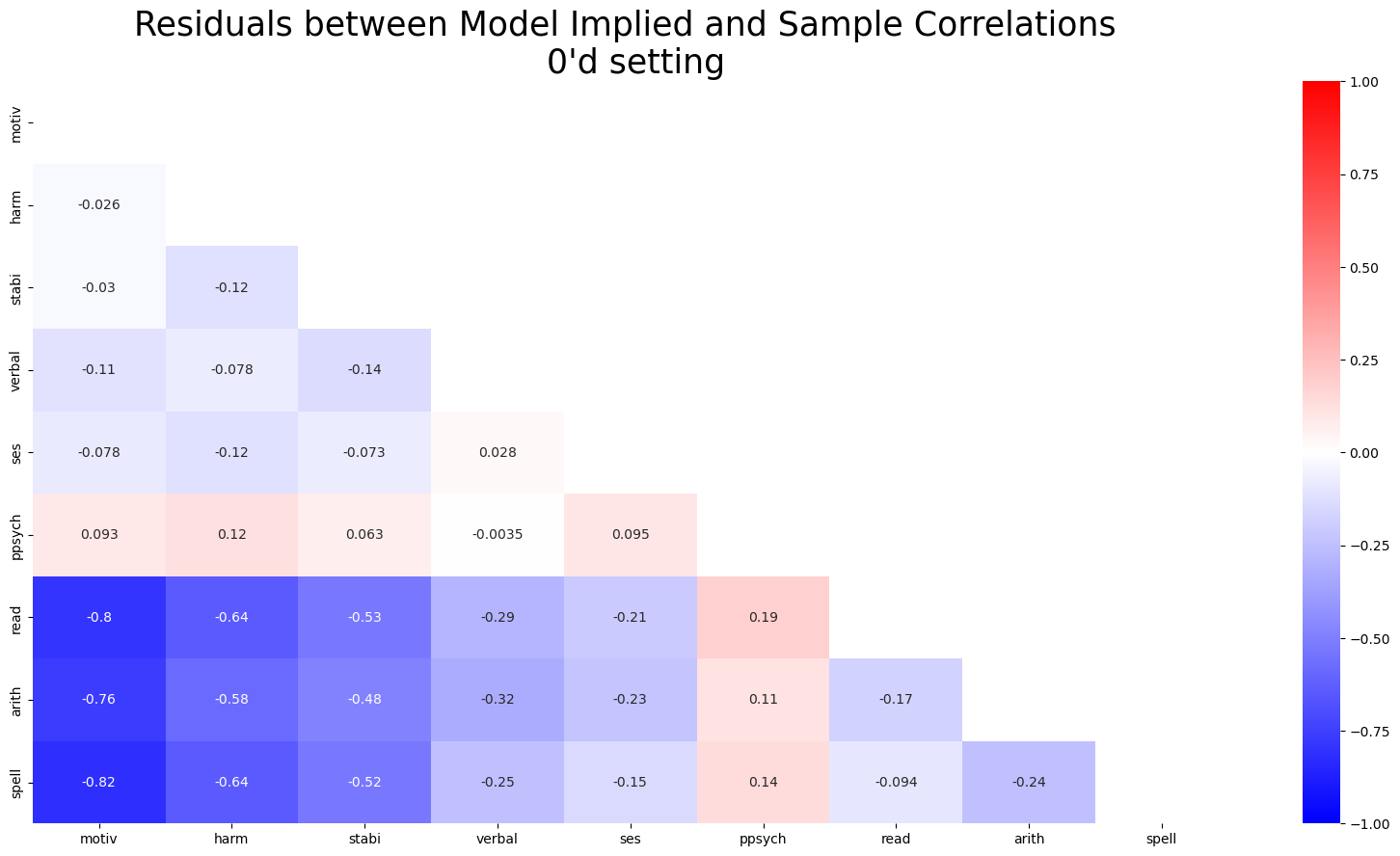

fig, ax = plt.subplots(figsize=(20, 10))
mask = np.triu(np.ones_like(residuals_posterior_corr0, dtype=bool))
ax = sns.heatmap(residuals_posterior_corr0, annot=True, cmap="bwr", mask=mask, vmax=1, vmin=-1)
ax.set_title("Residuals between Model Implied and Sample Correlations \n 0'd setting", fontsize=25);
